Starting the software

Connect the sensor

Connect the Aesthetix sensor using the provided cable to an available USB 3.0 USB-C or Thunderbolt port on your chosen host computer.

Only use Rhopoint supplied cables- low cost cables may not support the data transfer speeds required by the Aesthetix system to perform correctly.

Start the software

Double-click the Rhopoint Appearance Elements icon created on the desktop to start the software.

Additional setup

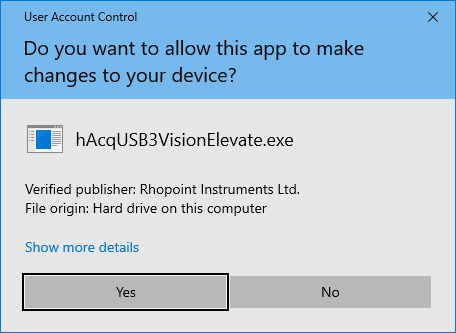

On the first start, the camera drivers are checked. If the drivers are missing, they will be installed upon confirming the following dialog:
