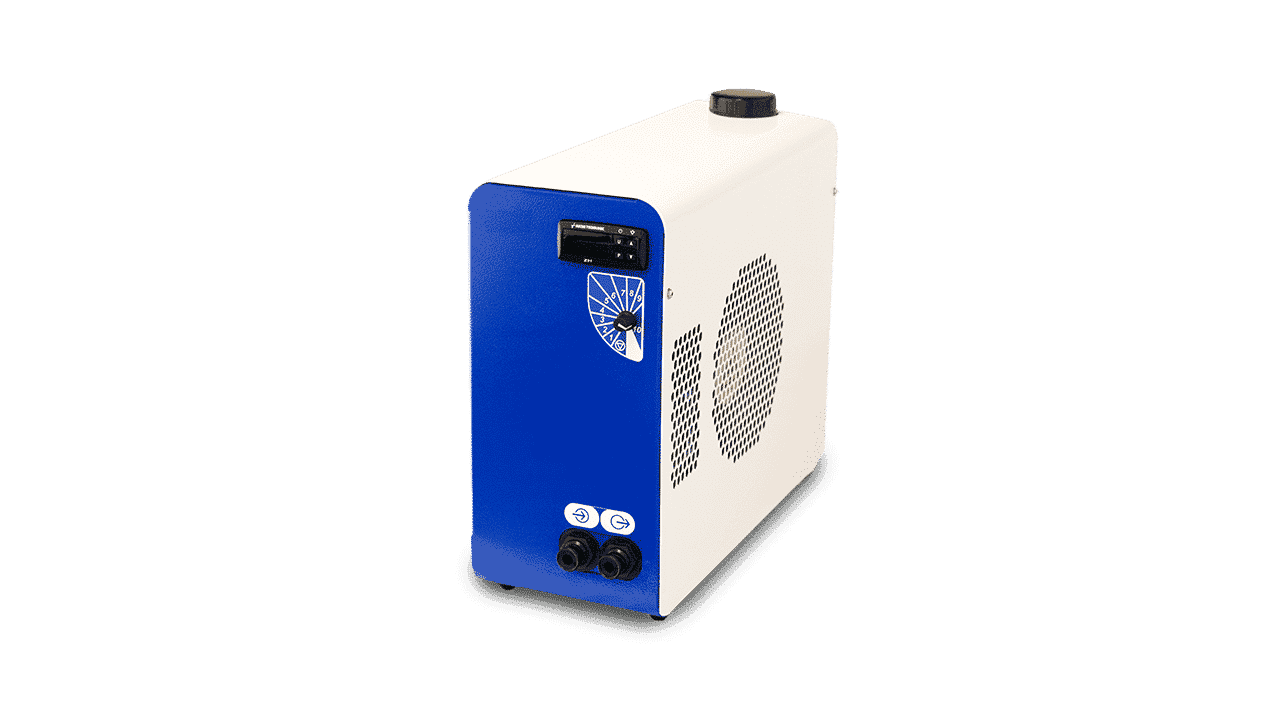

MFFT Chiller
- Ultra-compact design
- 480W Cooling Capacity (@17°C set point)
- Plug in and use – No customer settings)
- Low cost of purchase and operation
- Ideal for OEM Applications
Specifications
| Physical Attributes | ||
|---|---|---|
| Dimensions | 380mm (H) x 180mm (W) x 435mm (D) | |
| Weight | Dry 20kg Wet 21kg | |
| Noise Level | 64 dB(A) (optional manual adjustment) | |
| Toolless Access | No | |
| Cooling Capacity | 0.5kW (setpoint 20°C, ambient 20°C) | |
| Temperature Control Attributes | ||
|---|---|---|
| Technology | Vapor compression | |
| Evaporator Technology | Brazed plate heat exchanger | |
| Duty at +20°C Ambient, Setpoint +20°C | 500kW | |
| Duty at +20°C Ambient, Setpoint +15°C | 300kW | |
| Refrigerant & Charge | R134a, 360g | |
| Temperature Range (standard) | +4°C to +35°C (setpoint dependent on load) | |
| Temperature Range (extended) | -10°C to +35° | |
| Control Method | Continuous running, duty settable Low temperature fridge cutoff | |
| Temperature Stability (with constant load) | ‡0.1°C | |
| Temperature Resolution | N/A | |
| Maximum THR (Total Heat Rejection) | 850W | |
| Ambient Air Temperature Range | +35° | |
| Water Circuit Attributes | ||
|---|---|---|
| System Volume | 0.64L | |
| Pump Type | Sanso 24VDC brushless centrif pump 1.9bar(d/h) 3L/min (o/f) | |
| Pump Capability | 3.5L/min @1 bar | |
| Pressure Control (settable pressure relief valve) | N/A | |
| Standard Fittings | Pushfit 12mm | |
| Standard Chemical Compatibility | Tap Water, DI-water | |
| Electrical Attributes | ||
|---|---|---|
| (90-264 Vac, 1-/2~ 50-60Hz) U-spec | Yes, 2A@115Vac, 1A@230 Vac L+N+E or L1+L2+E | |
| Overcurrent Fault - cleared restart mode | Automatic | |
| Safety Interlocks, Protections, Standards & Indicators | ||
|---|---|---|
| 1st Party Approvals | CE | |
| 3rd Party Approvals | TBC | |
| Empty Fluid Reservoir Alarm | Not fitted | |
| Half-full Fluid Reservoir Indicator | Not fitted | |
| Full Fluid Reservoir Indicator | Not fitted | |
| Low Fluid Flow Alarm | Not fitted | |
| Temperature Out of Range Alarm | Not fitted | |
| Compressor HP Switch | Standard, via compressor control PCB | |
| Motor Thermal Overload | Not fitted | |
| Emergency Off | Standard, via fuse | |
| Warranty Options | 2 year parts, 1 year labour Enhanced warranty options | |
| Interlock Restored, Restart Mode | Automatic | |
